XD Headache Racks (Regular)
XD Headache Racks (Low Profile)
New 7in Side Rail now available
Slip Tanks available for all models
at the capacity you need
in the most convenient location

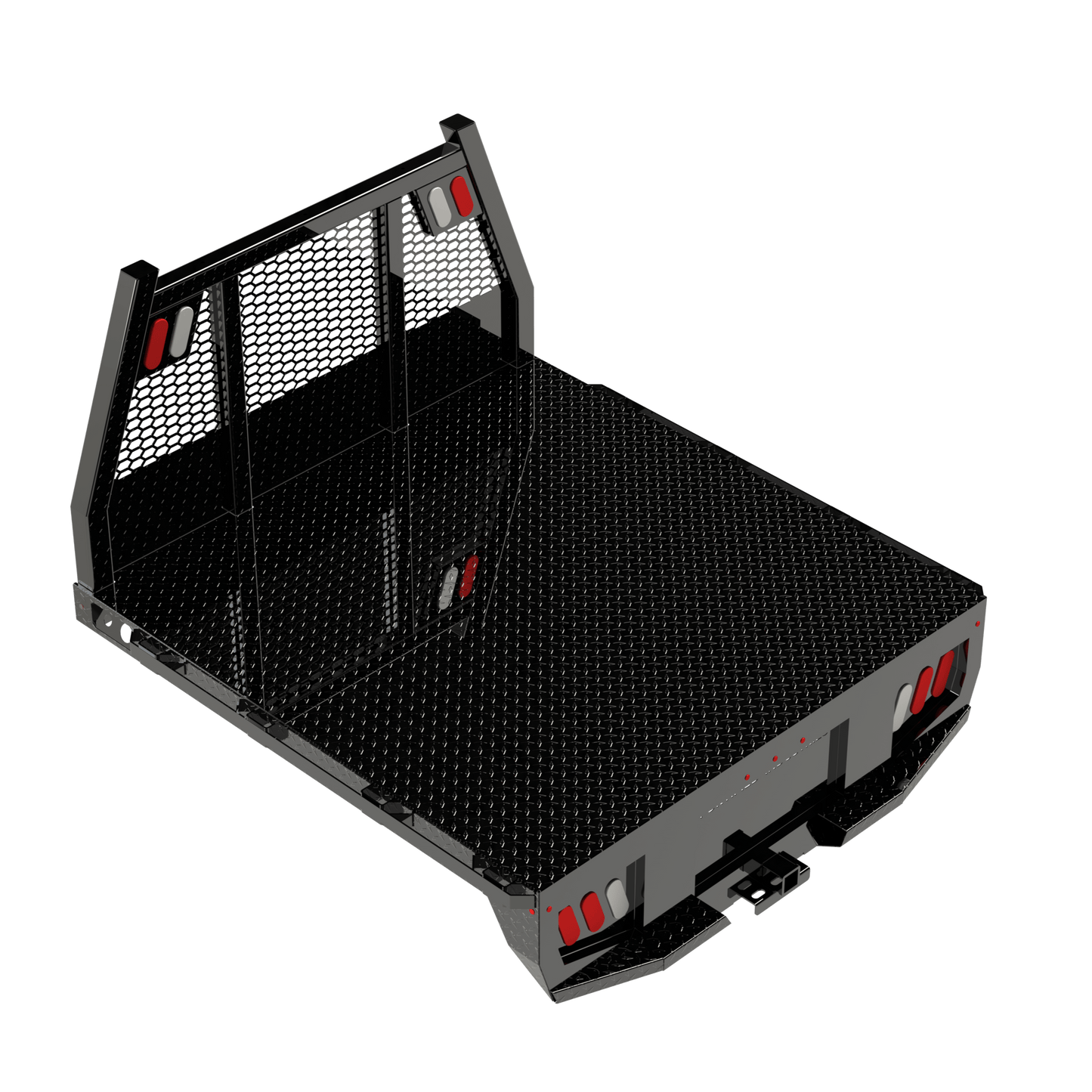

Outlaw Classic
Gallery
Quote Forms
Features/ Options
Features
Checkered or Flat Plate Tops
- 3/16 Steel Top Plate
- 3/16 Aluminum Top Plate
DOT approved LED lighting
- 6x LED Stop/tail light (Red)
- 4x LED Oval Back Up (Clear)
Finished to last
- Heavy Duty Industrial Primer and Paint
Options
Gooseneck Towing
- BW Turnover Ball
- Ressessed Gooseneck Well
Fifth Wheel Towing
- DSP Falcon (32,000 lbs GTW)
- BW Companion Kit (24,000 lbs GTW)
Folding Side Rails
- 7in Rails
- 12in Rails
Headache Rack
- Heavy Duty Standard or Low Profile
- XD and Full Width Headache Racks now avaliable
Bumper Shape
- Tapered
- Flat Bumper
Bumper Options
- Rear Rub Rails + Stake Pockets
- High mounted receiver tubes
Accessories
Safety Lighting
- Safety Stobes
Work Lighting
- 10,000 to 20,000 Lumen lights
- Bumper Flush Lights
Pipe Racks
- Standard Options
- Custom Options
Maxilift Cranes
- Mulitiple Capacities
- Multiple Mounting Locations
Slip Tanks
- Top mount and Undermount
- 250L, 350L, 450L Capacities
Chain Hangers
- 16in
- 20in
Specs
Materials (Steel)
- 3/16" Top (Checkered or Flat Plate)
- 11ga Shell
- 1/8" Checkered Plate Sides
- 3.5x3.5 / 3x3 Headache Rack (Heavy)
- 3in Channel (Crossmembers)
- 4in Channel (Frame Runners)
- 3/8" Rub Rails (Sides)
- 1/4" Stake Pockets
- 12ga Toolboxes
Materials (Aluminum)
- 3/16" Top (Checkered or Flat Plate)
- 1/8" Shell
- 1/8" Checkered Plate Sides
- 3.5x3.5 / 3x3 Headache Rack (Heavy)
- 3in Channel (Crossmembers)
- 4in Channel (Steel Subframe) (Frame Runners)
- 3/8" Rub Rails (Sides)
- 1/4" Stake Pockets
- 1/8" Toolboxes
Trailer Hitch
Curt Universal
- 20 000lbs GTW
- 2.5in Receiver Tube
- Class 5 hitch
- Tested for safety in accordance with SAE J684
Gooseneck
Recessed Well
- 30 000 lbs GTW gooseneck Ball (2-5/16") Curt #40088
- Compatible with our Well DSP 5th wheel companion kit (32,000 lbs GTW)
B&W Turnover Ball
- 30 000lbs GTW
- Compatible with our Top Plate DSP 5th wheel companion kit
(32,000 lbs GTW) - Compatible with B&W 5th Wheel Hitch B&W 'COMPANION' Flatbed kit
(22, 000 lbs GTW)
5th Wheel
B&W 'COMPANION'
- 22 000lbs GTW
- Flat Bed version
- Quiet Ride, Easy to operate, Adjustable
- Gross Pin Weight: 5500 Pound
- 1" thick jaws
- Mounts into the turnover ball slot
DSP Falcon
- 32 000lbs GTW
- Heavy duty for light duty commercial, farming & frequent towing usage
- 1" thick jaws
- Lock-out pin to ensure jaws are engaged for towing
- Bolts into top plate using the 6x 0.75" built in holes
BW Turnover + Flip DSP 5th Wheel
- 32 000lbs GTW
- 30 000 lbs GTW B&W Gooseneck Turnover Ball
- DSP Fifth Wheel (32 000lbs GTW)
7in Side Rails
- Bent side rails
- 11 ga steel | 1/8" aluminum
12in Side Rails
- 1.5x1.5in Square tubing design
- 1.5in gap for straps in side rails
Side Steps
- Step and handle
Side Steps + Toolbox
- Avalaible on 8'6" and longer
Deck | 8'6" | 9'4" | 11'4" |
|---|---|---|---|
Single Rear | 30x16x12 | 30x16x12 | 40x16x12 |
Dual Rear | 30x16x16 | 30x16x16 | 40x16x16 |
Toolboxes
- Square Boxes (Open Vertically)
- Tapered Boxes (Open Horizontally)
Deck | 7' | 8'6" | 9'4" | 11'4" |
|---|---|---|---|---|
Single Rear | 18x16x12 | 30x16x12 | 30x16x12 | 40x16x12 |
Dual Rear | 18x16x16 | 30x16x16 | 30x16x16 | 40x16x16 |
Regular (No Center Mesh)
Regular (Center Mesh)
Heavy (No Center Mesh)
Regular (No Center Mesh)
Heavy Low Profile (Center Mesh)
Heavy Low Profile (Center Mesh)+ Pilot Sign
Tapered
Flat
Reciver Tube
- Fits 2"x2" Tube
- For vices, spinners, or custom accessories
Flush Mount Lights
- Fits 2"x2" Tube
- For vices, spinners, or custom accessories
Lighting
Worklights
- 10 000 Lumen option
- 20 000 Lumen option
Safety Strobes
- Multiple options and shape avaiable
Pipe Racks
- Standard to custom options and sizes avaliable
Maxilift Cranes
- Multiple configurations and mounting locations avaliable
Pilot Signs
- Our low profile pilot sign allows you truck to stay as low as possible with the sign down
Slip Tanks (Top Mount)
- 250L, 350L, 450L sized Sliptanks available
Slip Tanks (Under Mount)
- 250L, 350L, 450L sized Sliptanks available
Chain Hangers
- 16in & 20in Models avaliable
E Track
- Custom Etrack mounting for extra mounting options onto the headache rack.
