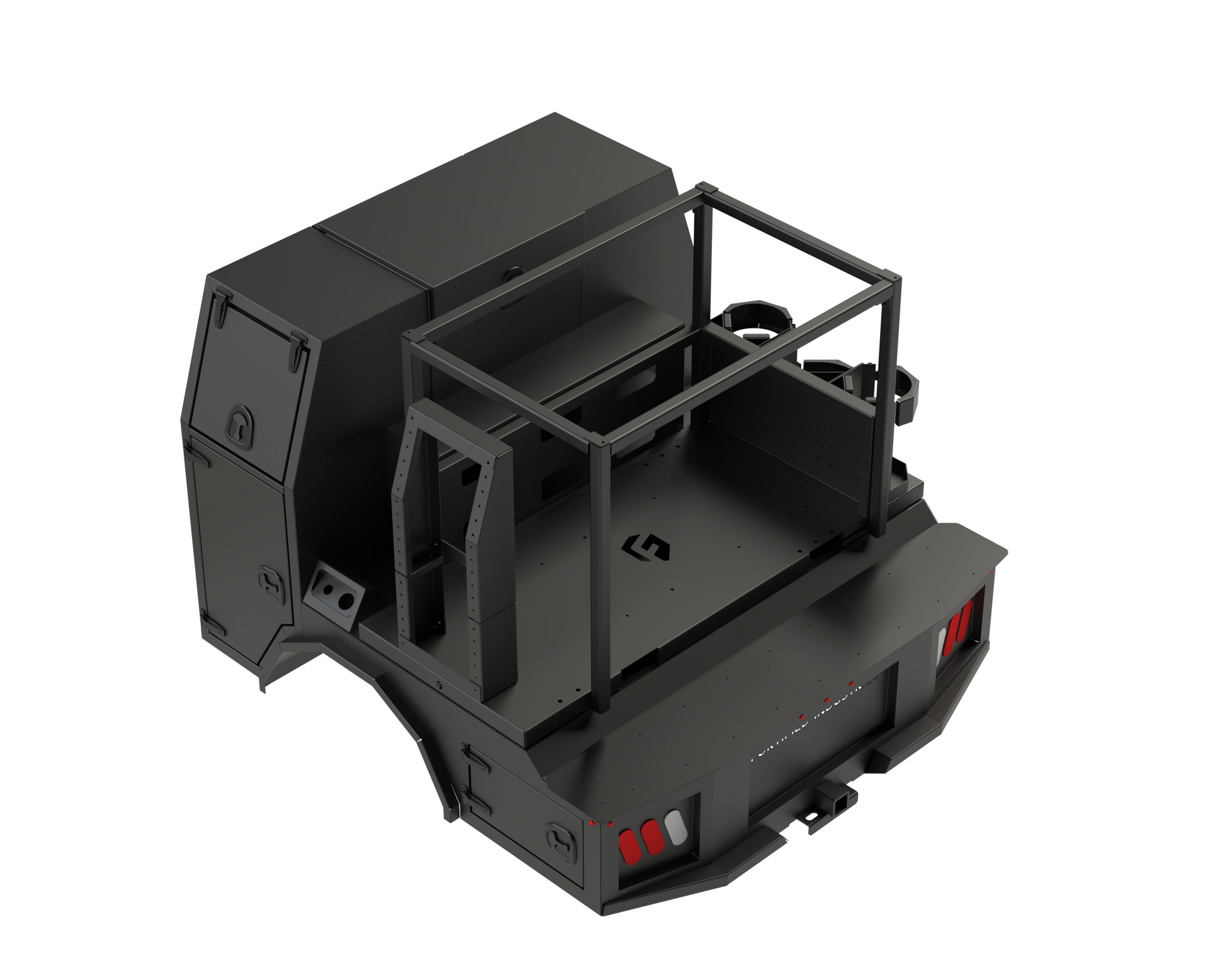

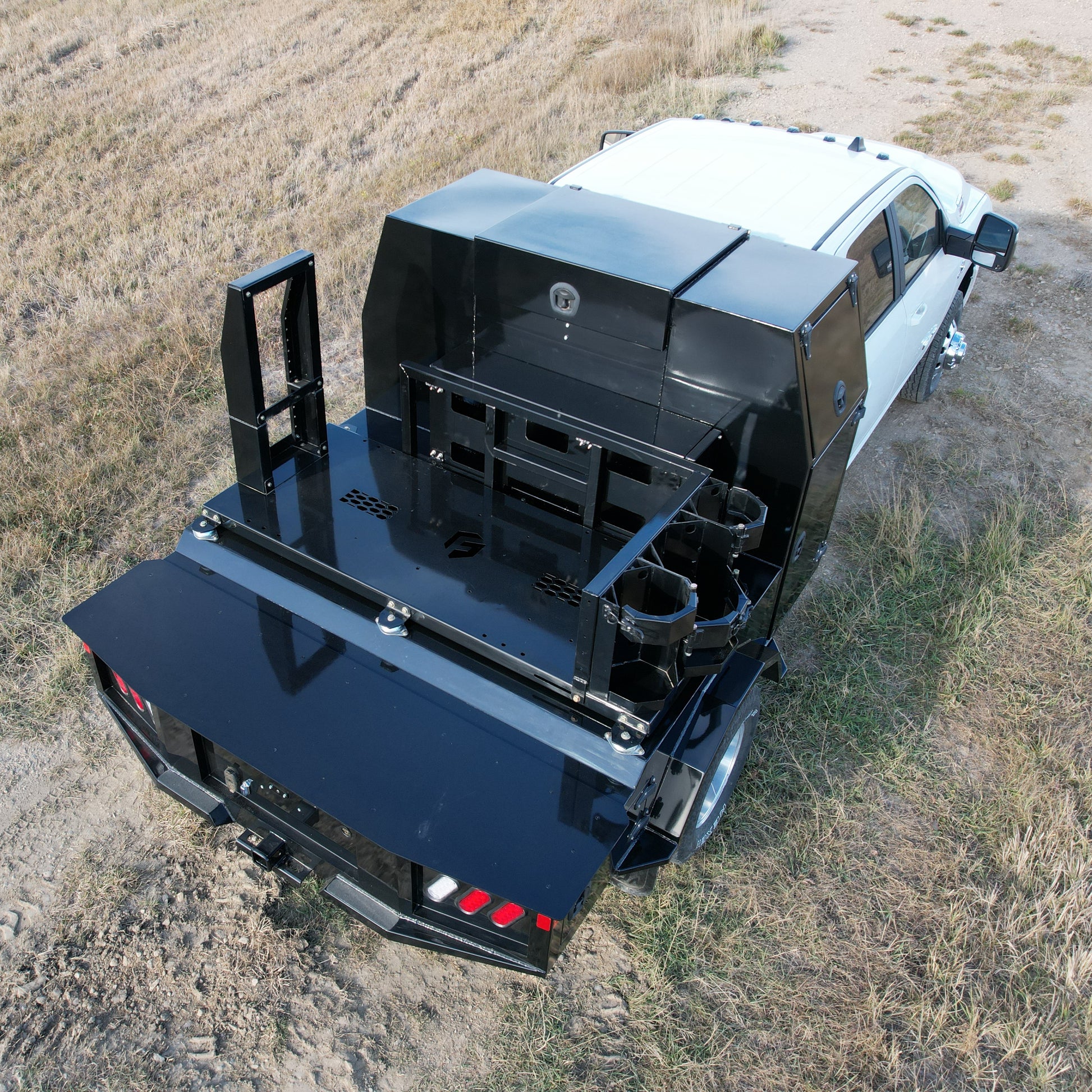

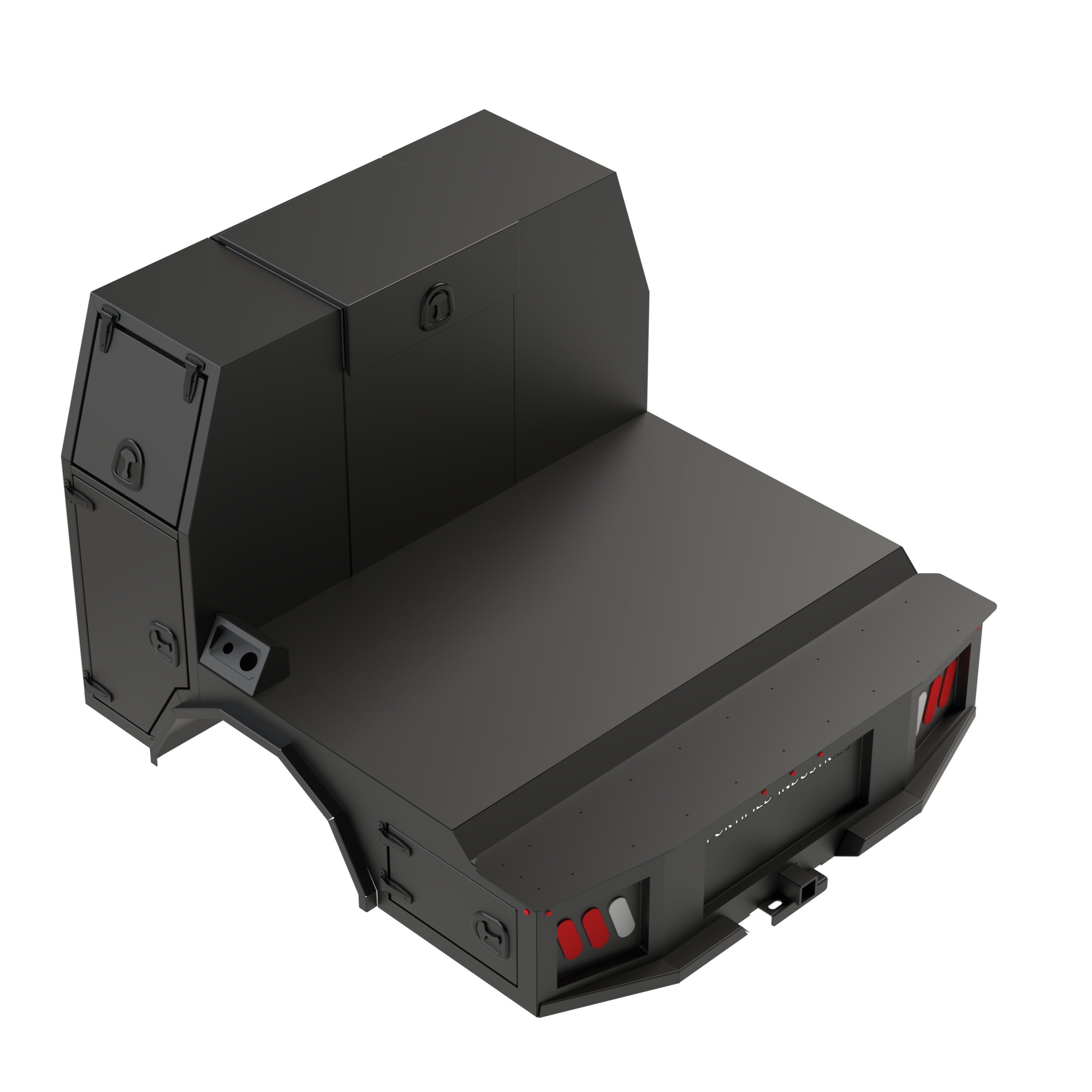

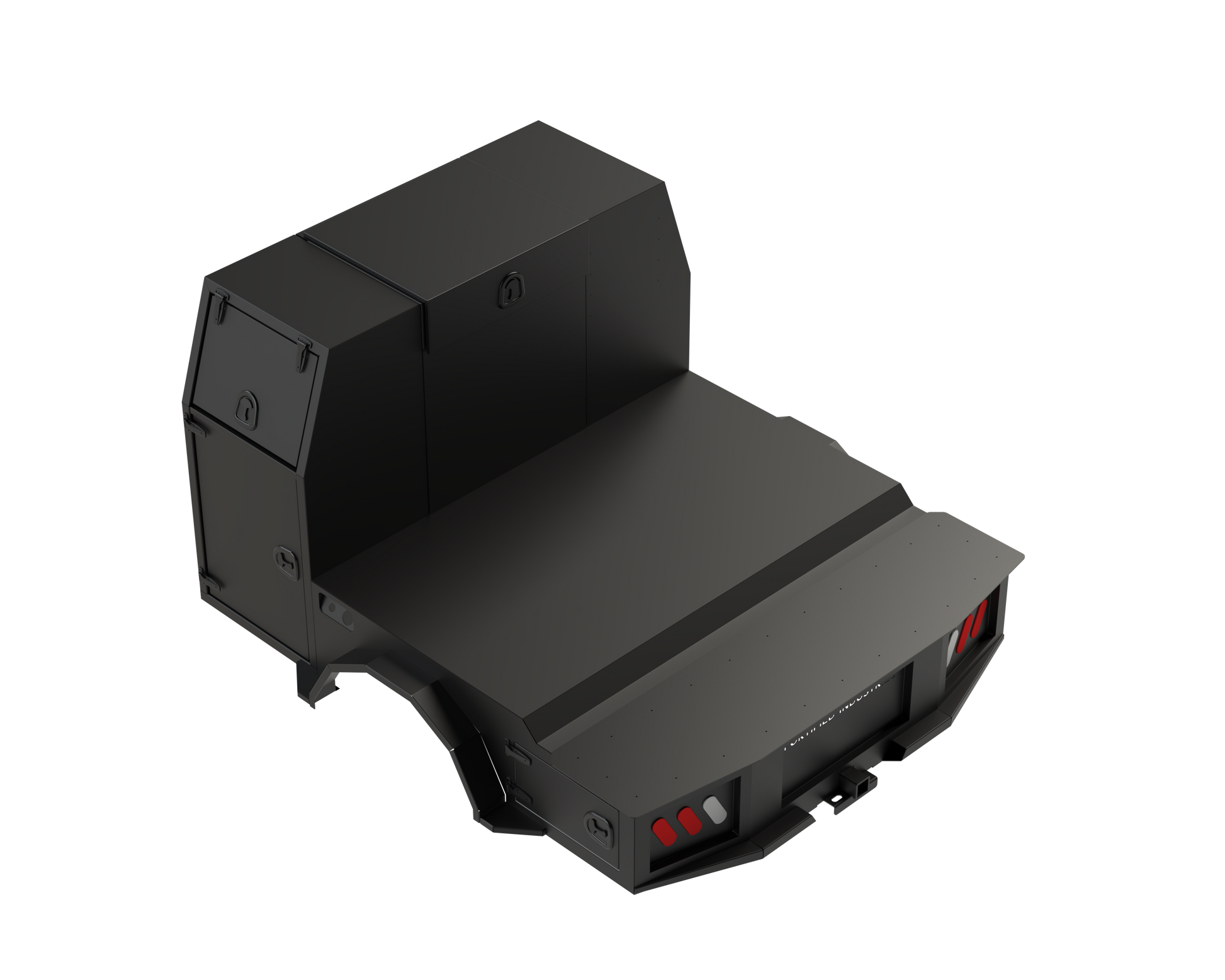

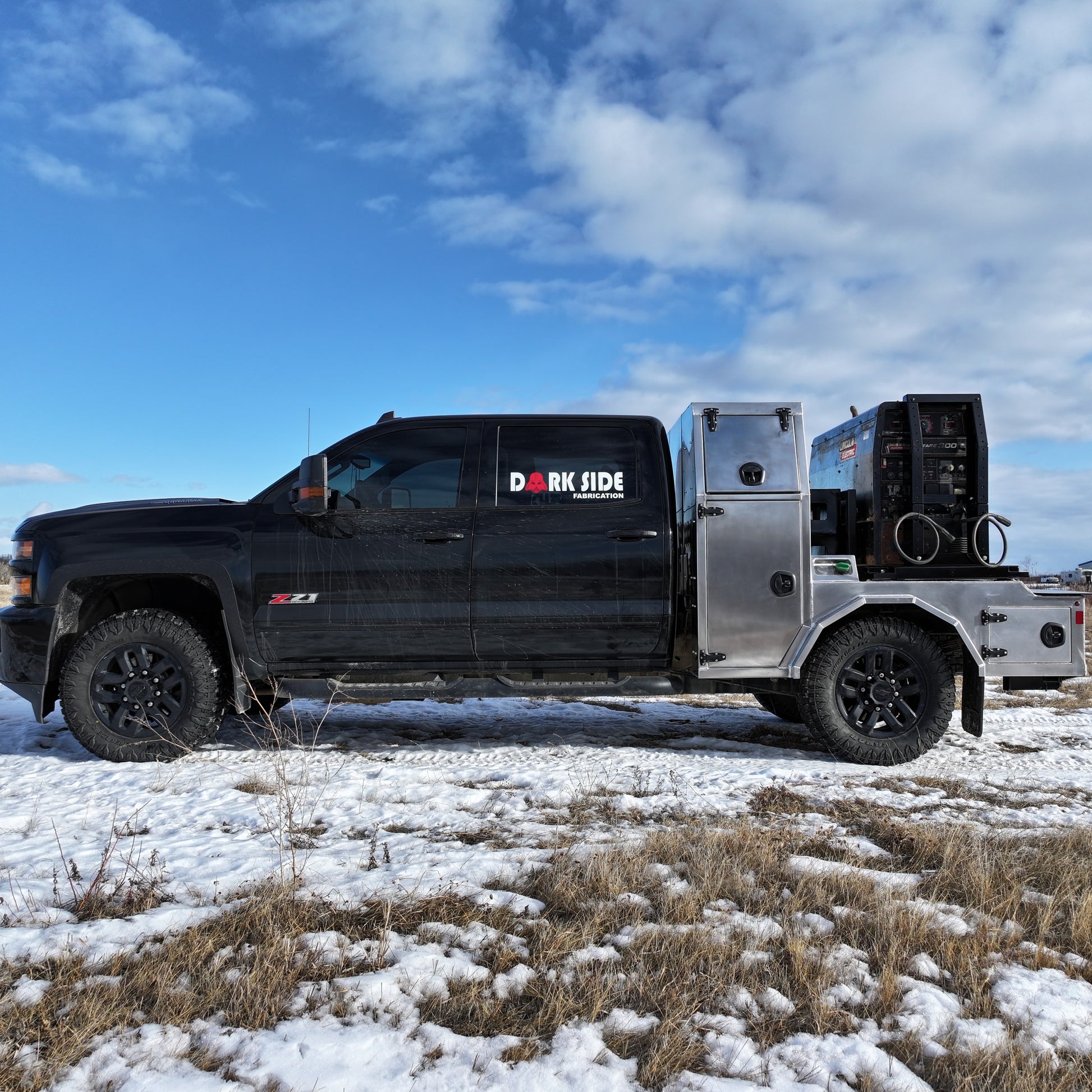

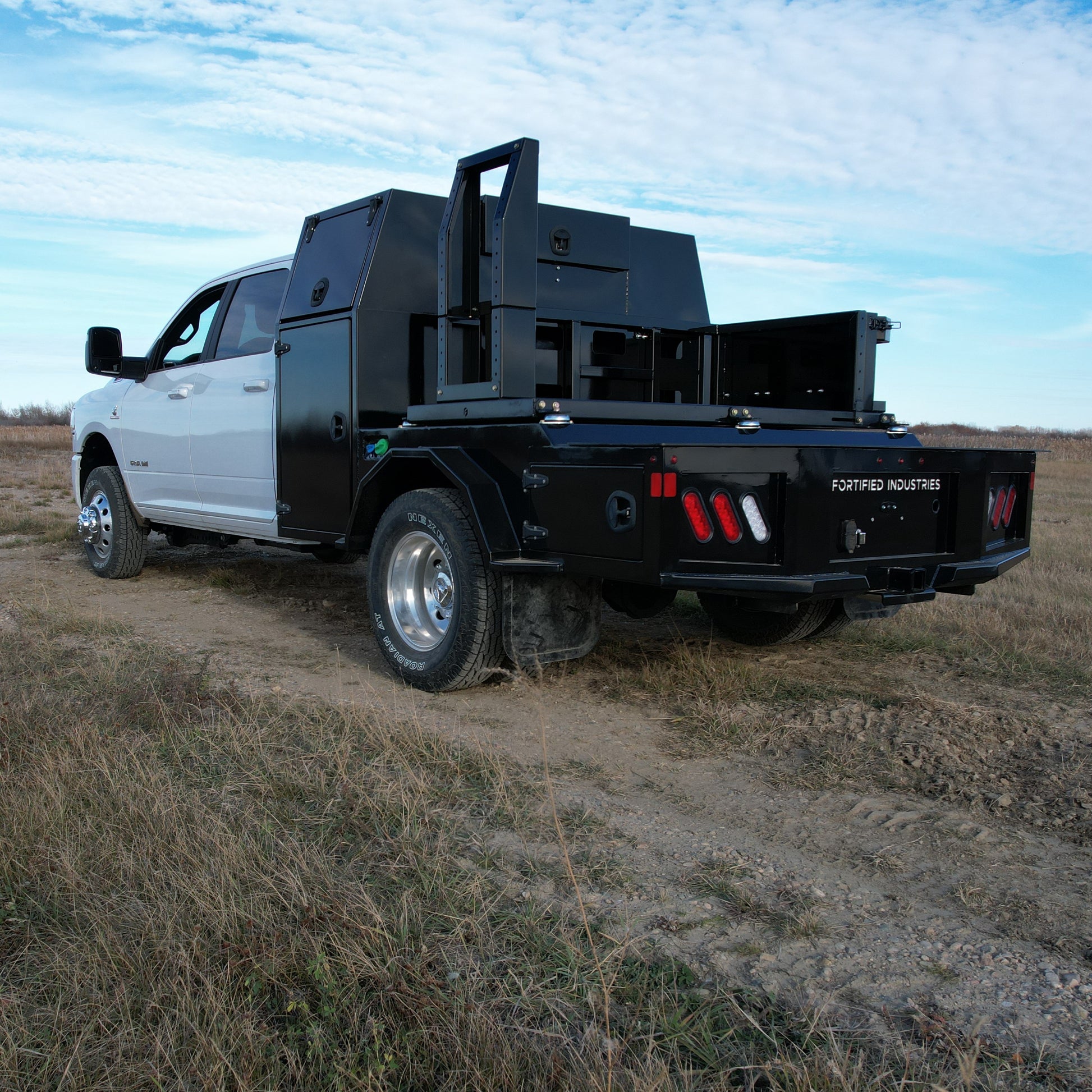

Welding Deck

STEEL

• 12ga Toolboxes
• 11ga Shell
• 3in Channel (Crossmembers)
• 3in Channel (Frame Runners)

ALUMINUM

• 0.125" 5052 Toolboxes
• 3/16" 5052 Sides/ Top
• 3in Aluminum Channel (Crossmembers)
• 3in Steel Channel (Steel Subframe)

Standard Specs

• DOT Approved Lighting
• Angled Fuel Fill

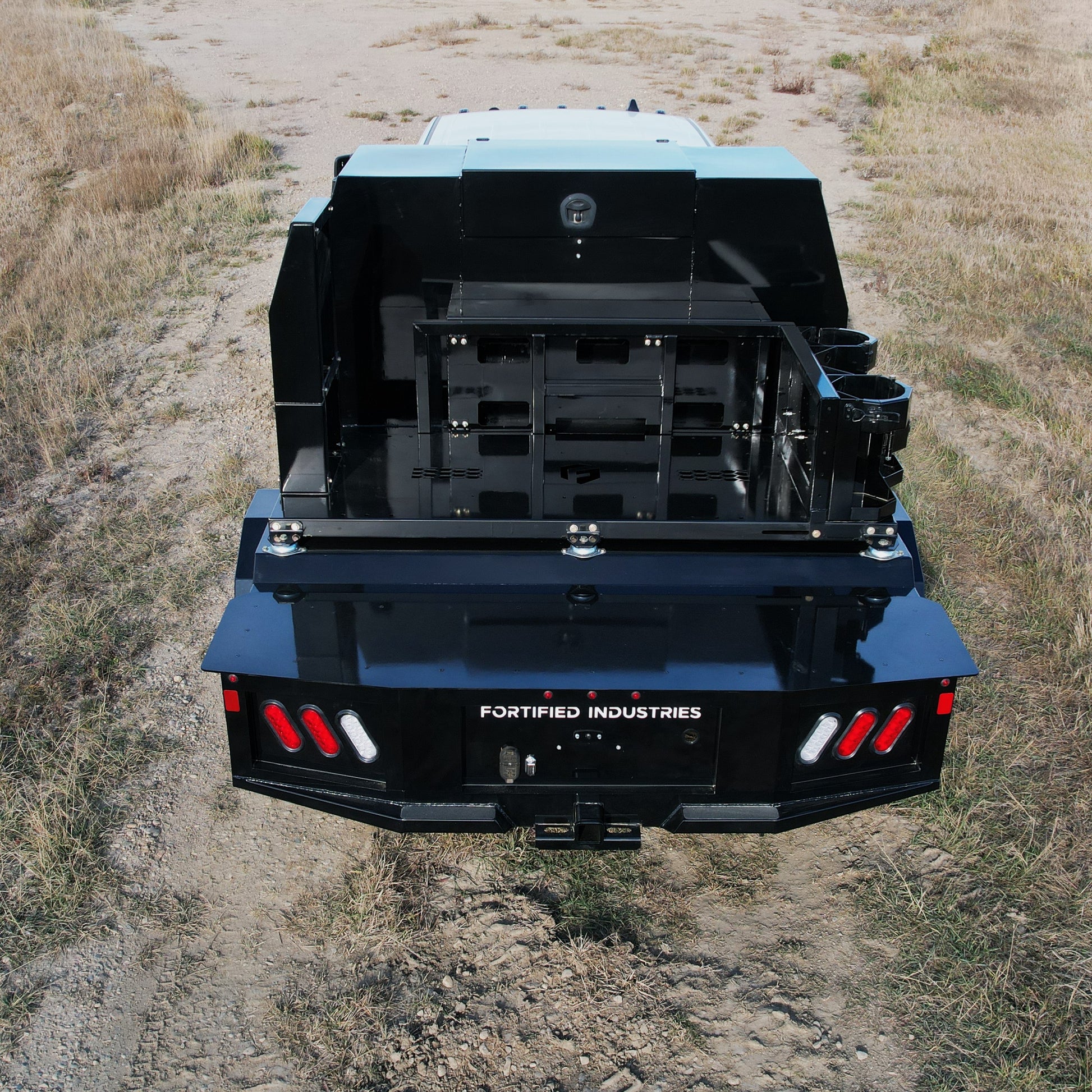

• Recessed Rear Lights with backplate protection
• High Durability Industrial Paint (sandblasted and primed) (Standard)
• Bare Aluminum (Standard)
• Raptor Coat (sandblasted and primed) (Optional)

• Single Rear Wheel

• Dual Rear Wheel

Functional Upper Cabinets

• Optional Beveller Holders
• Fits multiple shelves

Adjustable Slider System

• Heavy duty aluminum track system
• Shelf and Drawer options

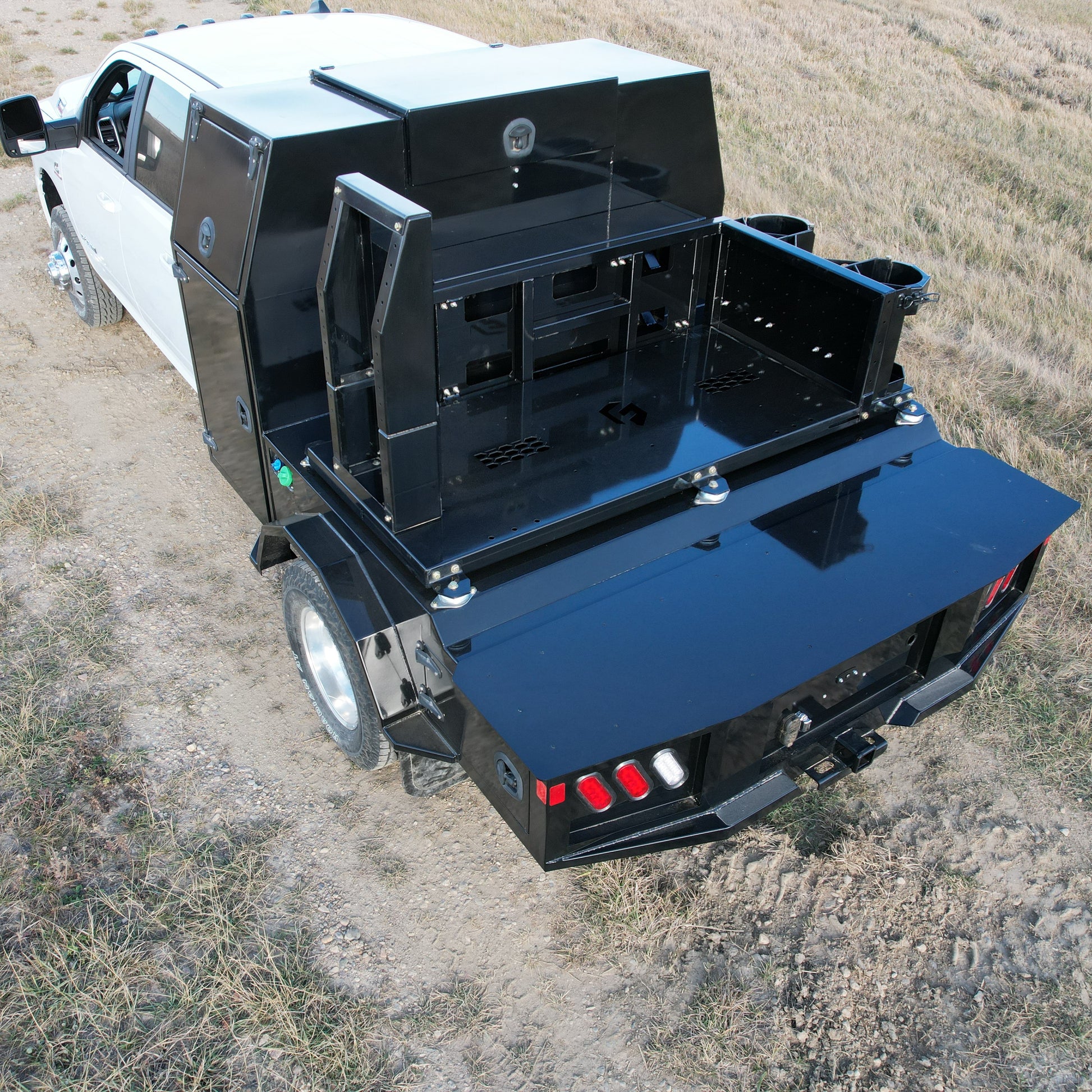

0.25in Steel Pounding Pad

• Bolted on and Replaceable

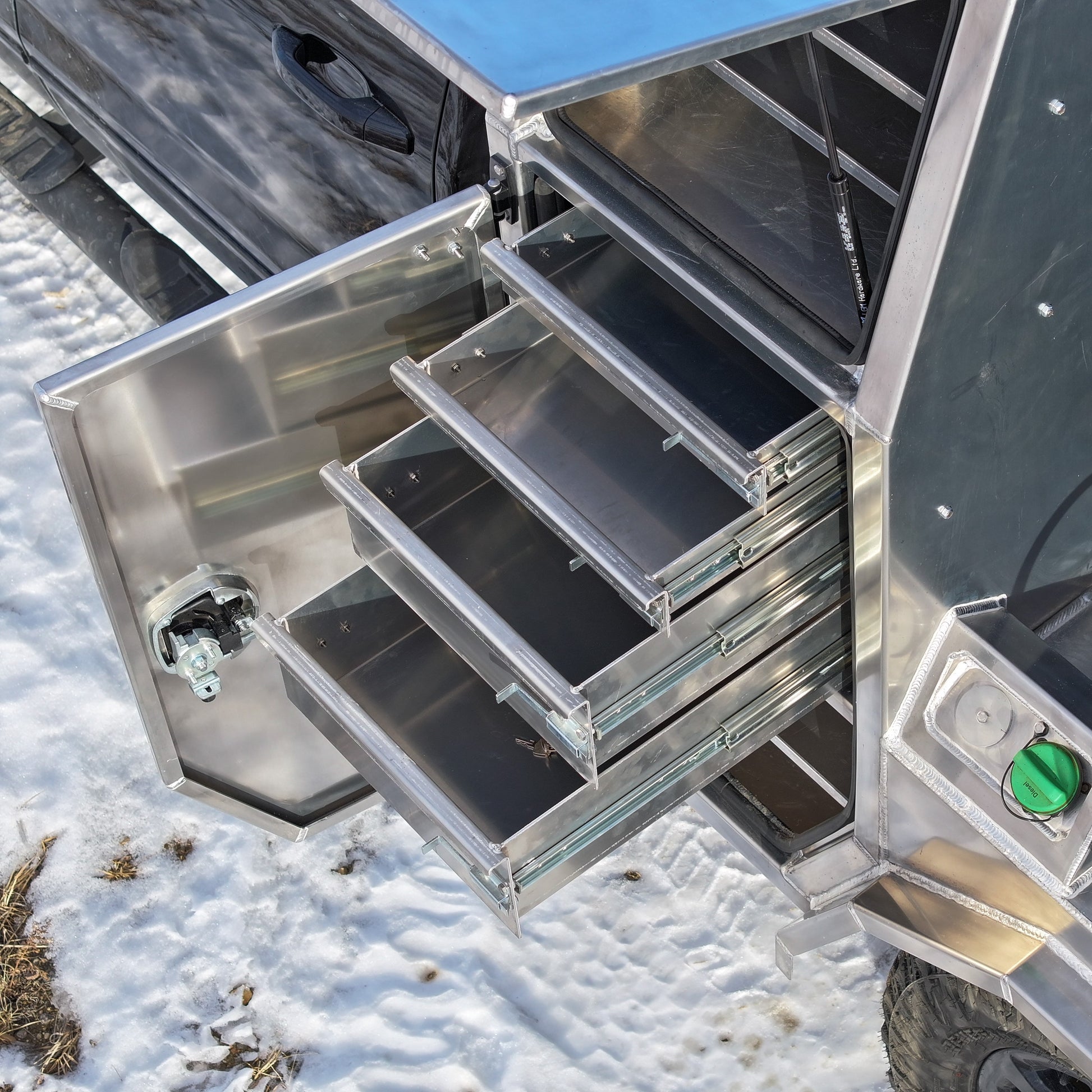

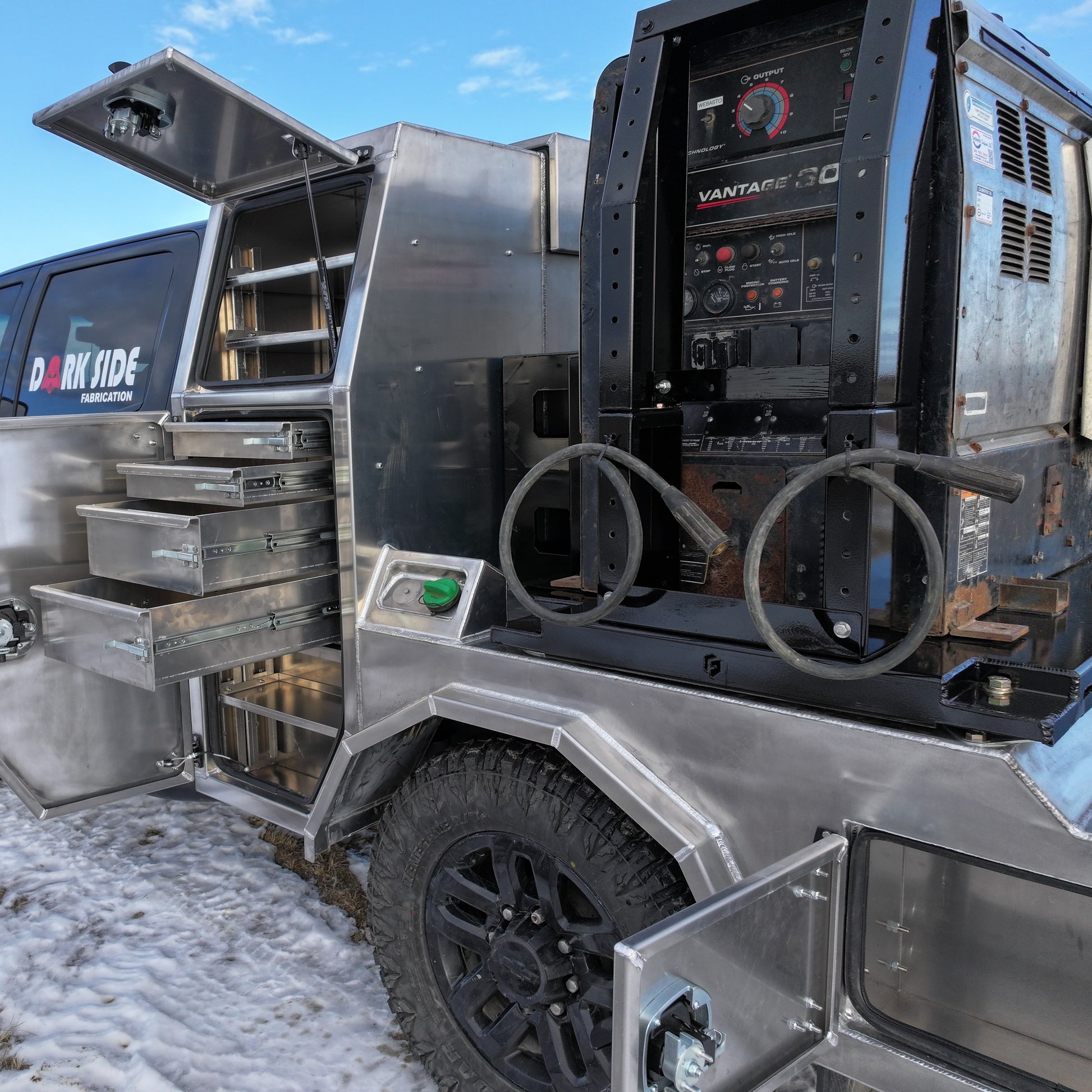

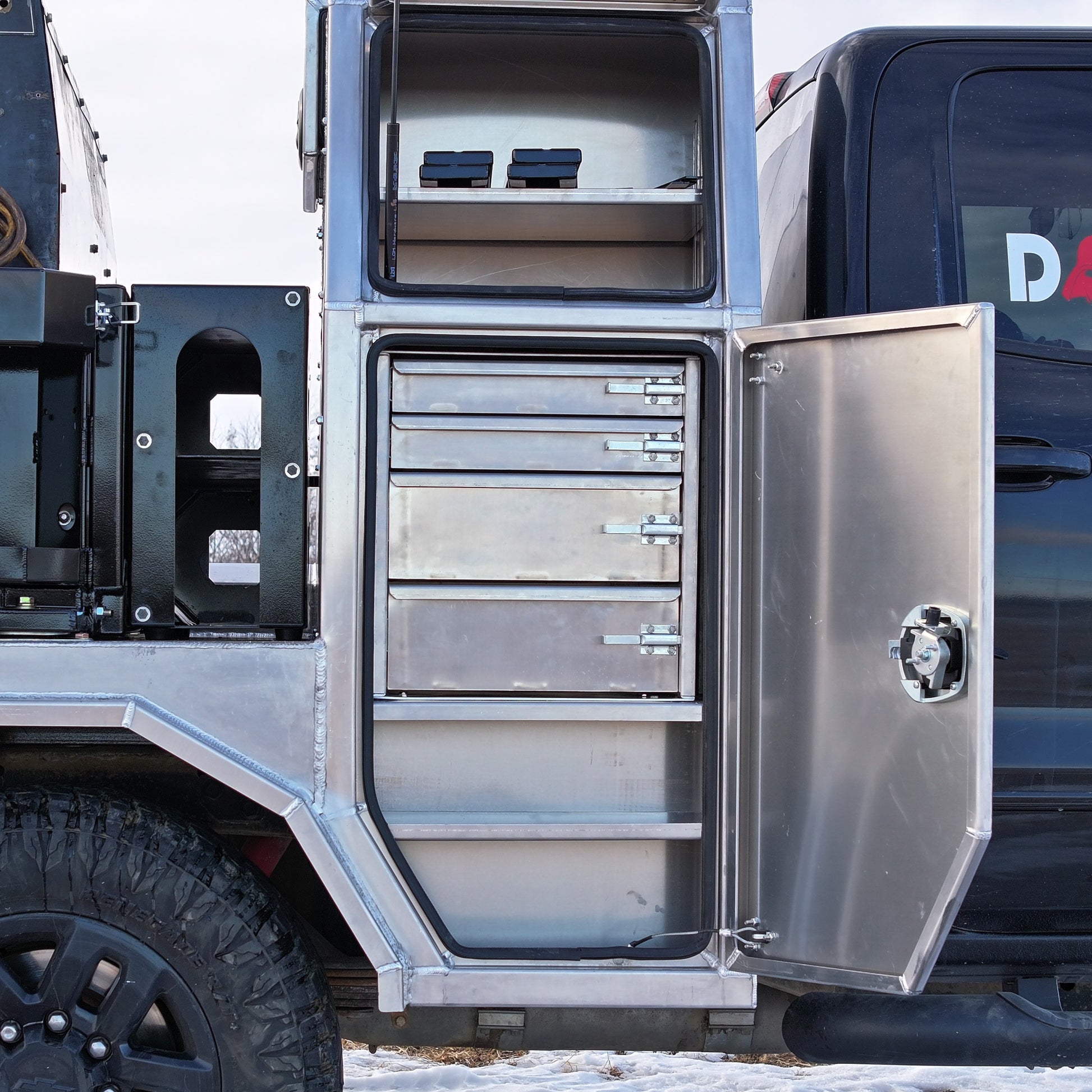

Drawer Packs that work for you

Made out of 0.125" 5052 Aluminum
250 lbs drawer slides
*Custom Sizes available at additional cost

Standard Sizes

3366 (2x3in | 2x6in)

Drawer Internal Dimensions
Depth: 20"
Width (Normal):20.625"
Width (Short Box): 14.625"

3339 Mega (3x3in | 1x9in)

Drawer Internal Dimensions
3in Drawers
Depth: 20"
Width (Normal):20.625"
Width (Short Box): 14.625"

9in Mega Drawer
Dually
Depth: 56"
Width :20.625"

Single
Depth: 48"
Width (Normal):20.625"
Width (Short Box): 14.625"

33

Drawer Internal Dimensions
Depth: 20"
Width (Normal):20.625"
Width (Short Box): 14.625"

333333 (6x3in)

Drawer Internal Dimensions
Depth: 20"
Width (Normal):20.625"
Width (Short Box): 14.625"

Custom Options/ Sizes

Half Packs

Lower Packs

• Not available in shortboxes

Optional Dividers

• Each piece of the dividers is secure but removable to create the drawer pack that works for you.

Adjustable Sloop

• Bottle Fixture mount slides in to better fit small welding machines and slides out to accommodate larger welding machines

Modular Bottle Storage

• Vertical Bottle Storage can adapted to multiple configurations

Reel Tree

• Lasered cut hole systems allows mounting of reels where you want them
